Green and Affordable Homes, Out of the Box

Shipping containers hold the potential to revolutionize urban housing. First of three parts.

By Monte Paulsen, 12 Apr 2010, TheTyee.ca

Photo 1 of 18

  • GB1_Citycentrelofts

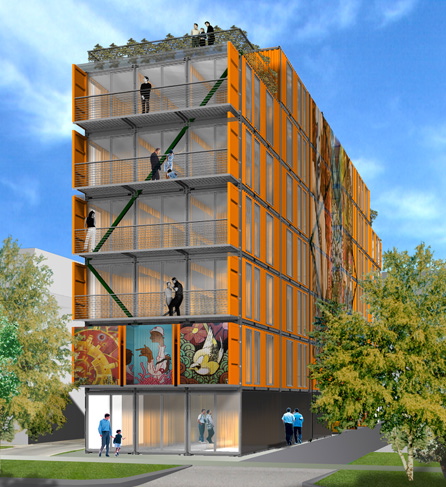

    City Centre Lofts is slated to become the first mid-rise to be built out of shipping containers in North America. It will be constructed using 50 per cent recycled material.
    The Salt Lake City building was designed by architect Adam Kalkin.

    The building's footprint is about the same size as a common 25- by 120-foot Vancouver Lot.

  • GB2_Lafayette

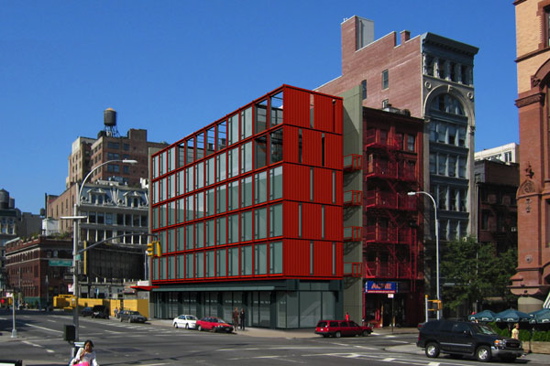

    This corner building was designed for Lafeyette Street in New York City, but would be easy to envision in downtown Vancouver.
    This project is being planned by the developer of Container City in London. It calls for 70 shipping containers to create 15 units. The estimated installation time is 10 days.

  • GB3_Zigloo

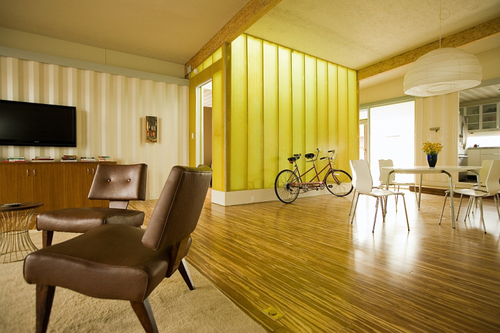

    Container-based buildings are permanent structures. Open floor plans such as this can cost less to build using shipping containers than wood or concrete, because long steel beams are included in the price of the used container.

  • GB4_Seatrain

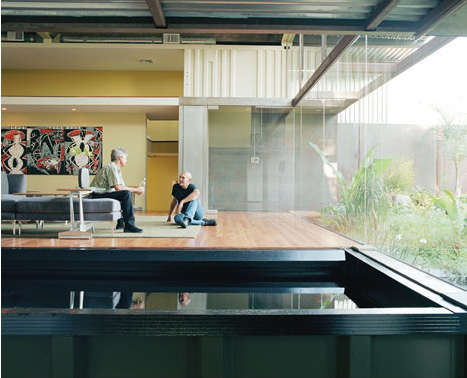

    The Seatrain house employs large glass panels to connect the Los Angeles home to its private garden.
    In this house, each shipping container provides a distinct function: one is a library, another a dining room and office space, another as bathroom and laundry, and yet another as master bedroom.

  • GB5_Travelodge

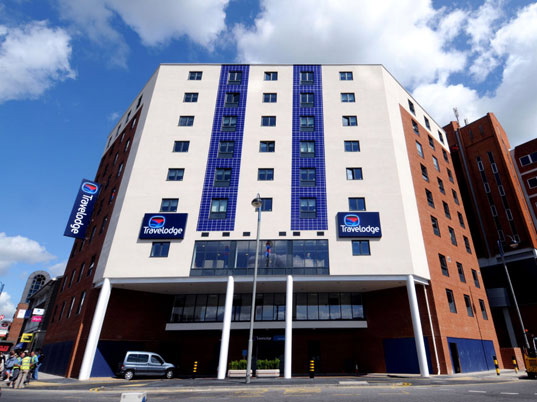

    Some buildings, such as this London hotel, conceal the shipping containers that support them. TraveLodge assembled this eight-storey building out of 86 shipping containers…

  • GB6_Travelodge

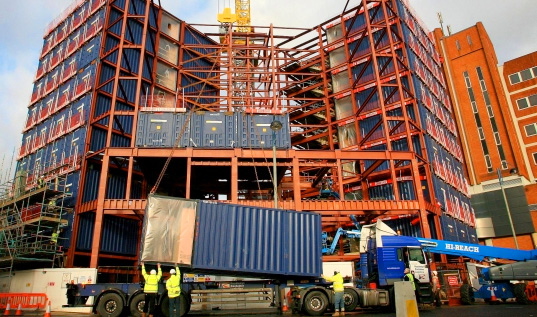

    ...here's a look at the same hotel under construction. The custom containers were built and completely fitted out at a factory in Shenzen, China. Aided by this rapid construction technique, TraveLodge aims to build 670 hotels in the UK, Ireland and Spain by 2020.

  • GB7_Riverside

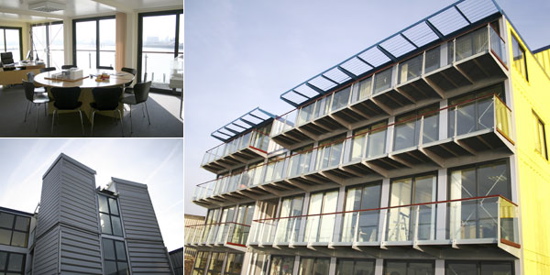

    Similarly, the 73 shipping containers that form The Riverside Building

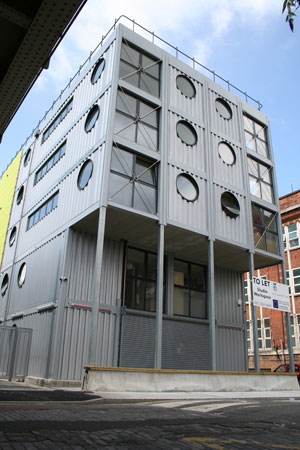

  • GB8_Containercity

  • GB9-Containercity

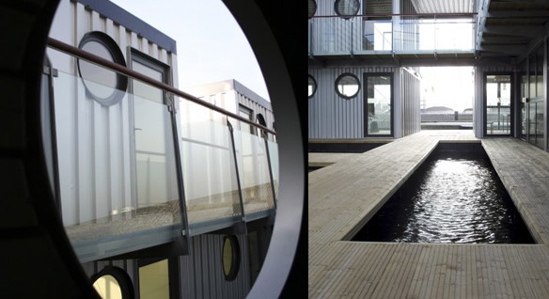

    "This modular technology enables construction times and cost to be reduced by up to half that of traditional building techniques while remaining significantly more environmentally friendly," claims Urban Space Management.

  • GB10_Platoon

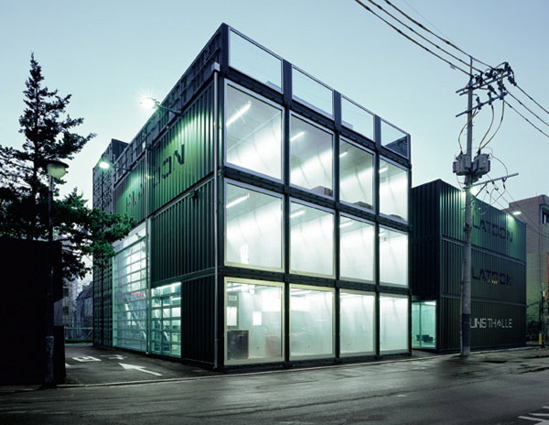

    Platoon Kunsthalle is an artists space in Seoul that celebrates its use of containers. Platoon was built from 28 shipping containers in Seoul, Korea, where many businesses operate from converted shipping containers.

  • GB11_Platoon

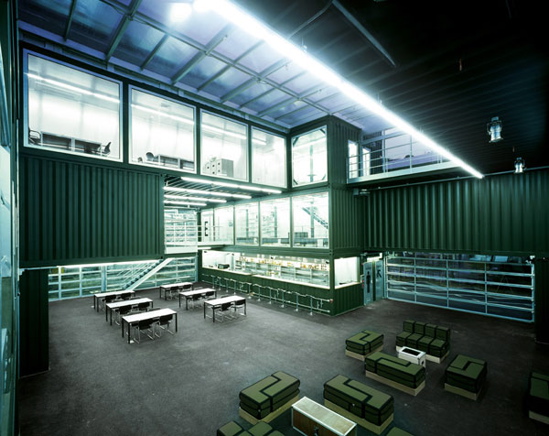

    At the heart of Platoon's interior stands the bar --- also fashioned from a shipping container. Platoon Kunsthalle is not about entertainment,” the group states. "The program will provide a communication platform for anybody interested in subcultural creative fields like street art, graphic design, fashion, video art, programming, music, club culture, political activism etc.

  • GB12_Puma

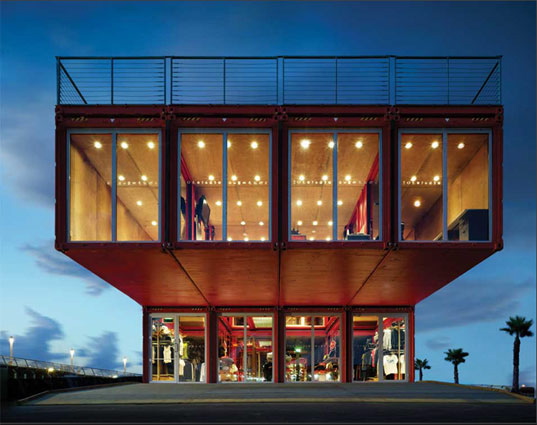

    Pushing the levitational envelope just a bit further still is this mobile retail store built for the shoe company Puma.

  • GB13_Puma

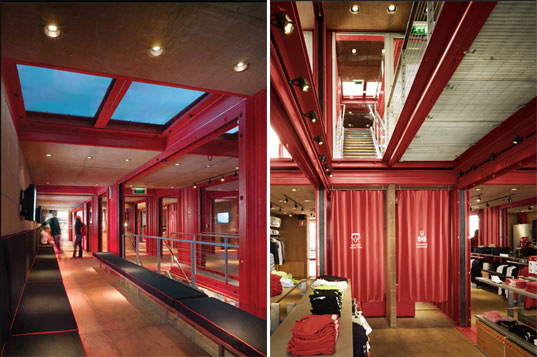

    …The Puma store, designed by LOT-EK, followed the Volvo Ocean Race from port to port during 2008-2009. It was disassembled and reassembled in Alicante, Boston, and Stockholm.

  • GB14_Puma

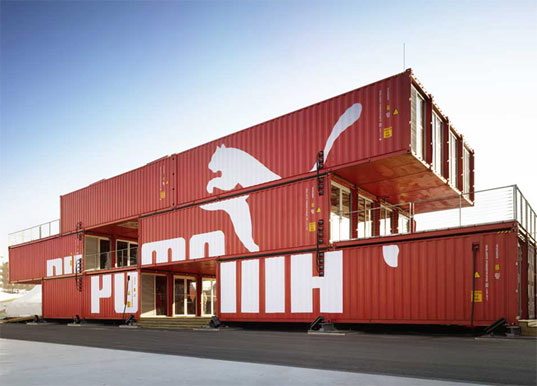

    …The Puma store uses 24 containers to create an 11,000-square-foot pavilion that includes a bar and two large decks.

  • GB15_Alleyhouse

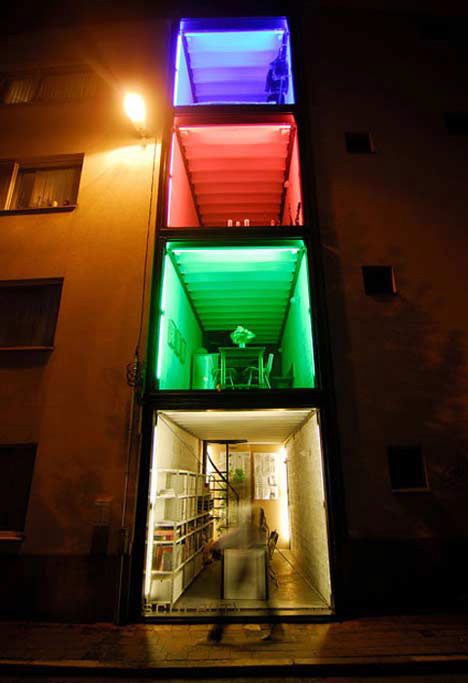

    Infill development is arguably the most cost-effective application of container-based construction. Shipping containers are built to stack vertically, as dramatically demonstrated by the puckish Alley House in Antwerp. On a lot only eight feet wide, the Alley House provides an office at ground level, a dining area on the second storey, a living room on the third storey, and a bedroom on the fourth.

  • GB16_Keetwonen

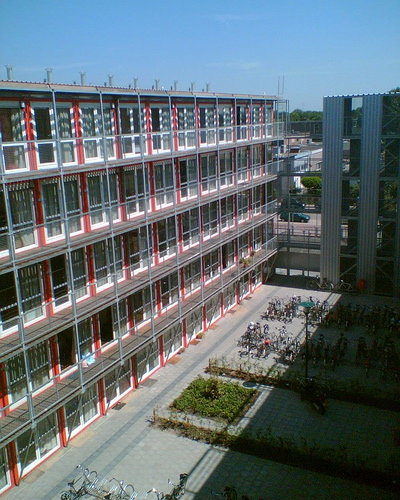

    The Keetwonen complex in Amsterdam is the largest container project in the world. It houses 1,000 university students in small suites stacked five stories high. These simple pre-fab container homes are sold for between $30,000 and $60,000 per unit --- a mere fraction of the $300,000 per unit that B.C. Housing is paying to build homeless housing in Vancouver.

  • GB18_Keetwonen

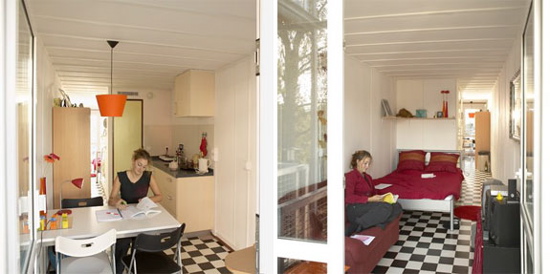

    Though only 320 square feet, each suite has separate sleeping and living rooms, a full kitchen and bath, large windows and a private balcony. The units are well insulated and served by a central heating system. The complex has high speed Internet and dedicated bike parking.

  • GB18_Keetwonen

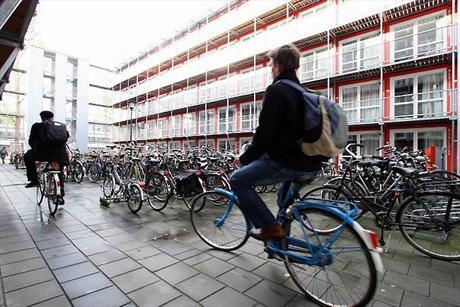

    Keetwonen's social interaction is part of its appeal. The complex hosts cafes, shops, art studios and even mini-gyms. When it was built in 2005, Keetwonen was expected to serve only five years. But it proved particularly popular with students --- and affordable for the university --- so its life expectancy has been pushed back to 2016.

Related

Vancouver boasts both the "Greenest Neighbourhood in the World" -- the LEED certified Olympic Athlete's Village -- as well as the world's first LEED Platinum convention centre.

But the city that calls itself the "Green Capital" has shown surprisingly little interest in a rapidly emerging building technology that promises to become not only far more environmentally friendly but also significantly less expensive than the heavy concrete construction that has reshaped the city's skyline. Indeed, Canada's first modern home built this way stands not in the Terminal City, but across the straight in Victoria.

Over the next few days, The Tyee will report on how intermodal shipping containers -- those 40-foot steel boxes that flow through the region's ports at the rate of more than two million a year -- are being refashioned into affordable green buildings across Europe and Asia.

And on Thursday evening, the Tyee Solutions Society will join with Architecture For Humanity Vancouver and the Design Foundation of British Columbia to kick-off the Quick Homes Superchallenge, a two-part charrette aimed at generating affordable housing concepts for public discussion.


The box that changed the world

The humble steel boxes in which goods are shipped, trained and trucked around the world touched off an economic "revolution," according to Mark Levinson, author of The Box: How the Shipping Container Made the World Smaller and the World Economy Bigger.

Levinson chronicles the 18 million big steel boxes that make globalization possible, flooding markets with low-cost consumer goods from China, filling cities with cut-rate department stores such as Wal-Mart, and felling wide swaths of the North American manufacturing sector and the high-paying jobs it provided.

"In 1956, the world was full of small manufacturers selling locally," Levinson writes, "by the end of the twentieth century, purely local markets for goods of any sort were few and far between."

One of the world's first purpose-built intermodal container ships set sail from North Vancouver in November of 1955. The Clifford J. Rodgers carried 600 containers to Skagway, Alaska, where they were loaded on to rail to be carried over the White Pass to the Yukon.

Today, Port Metro Vancouver is Canada's busiest port. More than two million "twenty-foot equivalent units," or TEUs, flow through every year, according to port records. (Containers come in five basic sizes. A standard 20-foot-long by 8-foot-wide container equals one TEU. A 40-foot container is two TEUs.)

The vast majority of containers arriving in Metro ports hail from China, followed by Japan and Korea. And most return to the nations that sent them. But almost 100,000 get left behind each year.

In 2009, for example, records show that a total of 1,122,849 TEUs entered Port Metro Vancouver, while only while 1,029,613 TEUs were shipped outbound. That's a difference of 93,236 containers.

Likewise, in 2008, Metro ports took in 96,509 more TEUs than they sent away.

Those containers don't all pile up in the Lower Mainland. Most leave the region via truck or rail car, and many of those ultimately leave Canada via a border crossing or another seaport. But North America's longstanding imbalance of trade with China and other Asian exporters tends to create a backwash of surplus containers in places Vancouver and other port cities.


Greener than concrete, stronger than wood

Containers are built to stack nine high while carrying 60,000 pounds on a deck that's pitching on the open ocean. They are built to survive decades of service in a marine environment, and, if kept painted, will last indefinitely as part of a building.

"These are just big steel boxes," said Barry Naef, who directs the GreenCube Network and the Intermodal Steel Building Unit (ISBU) Association. Naef noted that these boxes present the opportunity to not merely recycle but creatively reuse what is arguably the most durable waste product of the globalization era.   Stranded containers that are not repurposed tend to be melted down. As fuel costs rise, containers on the wrong side of the ocean can become worth more as scrap metal than the cost of shipping them back to China empty.

A typical 40-foot container represents about 8,000 pounds of steel, which can require about 8,000 kilowatt-hours of energy to melt and remanufacture. That's about half of what a typical home uses in a year. As a result, buildings created from used shipping containers function like carbon reduction and long-term storage devices.

At the same time, containers tend to replace concrete in more urban settings, due to the metal boxes' strength and easy stackability. And cement is far from green.

The manufacturing of cement is the largest source of carbon dioxide emissions after fossil fuel consumption, according to U.S. government statistics. A report by the World Business Council found that every ten pounds of cement releases nine pounds of carbon dioxide emission.

But according to Barry Naef, the biggest green advantage of shipping containers may be their strength.

"Their strength allows the structure to provide green roofs, green walls, solar hot water roofs, all without additional supports," Naef said.   "It's hard to do these things on a wood-frame structure. "Concrete is great. But when you have to go spend so much to do a green roof, I don't think it winds up getting built."


Construction costs 25 per cent less

In port regions such as Vancouver, end-of-life shipping containers are often sold for as little as $1,500 in the Lower Mainland, while pristine 40-foot "high cubes" -- which feature nine-and-a-half-foot ceilings -- can fetch $4,000. Either way, it's substantially less than the cost of building a similar box out of wood or concrete.

The cost to convert that box to a home varies widely.

Charities providing housing to Maquiladora workers in Mexico are able to convert used shipping containers into simple homes for about $15,000 (excluding land costs). Those homes are small, but they come complete with doors, windows, a full bathroom and kitchen appliances for less money than most Canadians spend on a car.

Companies that provide container-based worker housing to the oil and mining industries sell heavily built pre-fab units for prices that start in the range of $35,000 per container unit. Some of these are heavily insulated for arctic conditions. Others include generators and water-processing plants. (More on these units on Wednesday.)

Custom home builders report saving an average of about 25 per cent against what a comparable home would have cost to build, according to Naef. He said cost savings vary widely according to how many hurdles are thrown up by local zoning and building code officials.

"Local building codes are a real hurdle for some builders," Naef said.

"We need to do a much better job of educating zoning boards and building inspectors," he said. "Each building inspector seems to have a different reason why they wouldn't let someone build with shipping containers. Many objections are based on false assumptions."

For example, he noted that many local building codes still require studding out all the walls in order to comply with outdated zoning ordinances.   "This unnecessary duplication reduces --- but still does not eliminate --- the cost effectiveness of container-based construction," Naef said.


New built form emerging in Europe and Asia

In dense cities such as Vancouver, however, the greatest cost savings and the most significant green advantages generally come down to the same thing: The less land a home requires, the better.

Containers are built to stack. And it has been through the creative assembly of stacks of containers -- coupled with the innovative ways of opening up the interiors -- that a new built form has begun to emerge in Europe and Asia. Here are a few examples:

Container City is a collection of London-area developments drawing on container techniques perfected by a company called Urban Space Management. The first project was built in East London, in 2001. The Container City projects include offices, retail shops, artists studios, a nursery, a youth centre, and a school as well as housing.

"This modular technology enables construction times and cost to be reduced by up to half that of traditional building techniques while remaining significantly more environmentally friendly," states Urban Space Management.

Keetwonen is the world's largest container housing project, as well as one of the simplest. The project is a student village built from 1,050 containers near Amsterdam city center.

Though only 320 square feet, each suite has separate sleeping and living rooms, a full kitchen and bath, large windows and a private balcony.  The units are well insulated and served by a central heating system. The complex hosts cafes, shops, art studios and even mini-gyms.

And while some container projects strive to conceal the container's industrial essence, a Korean project, Platoon Kunsthalle, takes the opposite approach. The Seoul artists centre was created from 28 containers.



Next in the series: A look inside one of Canada's first homes built with shipping containers. You can also click here to download a copy of the entire series in PDF.  [Tyee]
